Connector set for MCflex/CANarmatur

Mobile Preview: Plug set for MCflex/CANarmatur - ehb electronics products ehb1469

Mobile Preview: Plug set for MCflex/CANarmatur

Connector set for MCflex/CANarmatur

Product No.:: ehb1469
Shipping time:: (abroad may vary)
Stock:: 5 pieces
Weight:: 0.1 kg per piece

75,57 EUR

plus 19% tax excl. Shipping costs

Ask about product

Description

Description

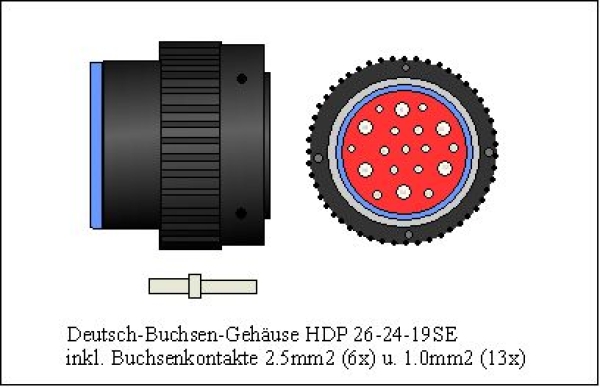

Connector set for MCflex/CANarmatur comprising:

- 1 x German-socket-housing HDP 26-24-19SE
- 6 x German contact socket 2,5mm2
- 13 x German contact socket 1,0mm2

Consistent with MCflex and CANarmatur

- Connector type: Round, Industrial
- Serie: HDP20
- Connector material: Thermoplastic
- Gender: Socket
- Conact gender: Pin
- Connector assembly: Cable
- Connectors, Housing size: 24
- Betting order: 24-19
- Contacts, number of: 19
- Contact connection: Crimp
- Contact material: Copper
- Contact coating: Nickel
- SVHC:No SVHC (15-Dec-2010)
