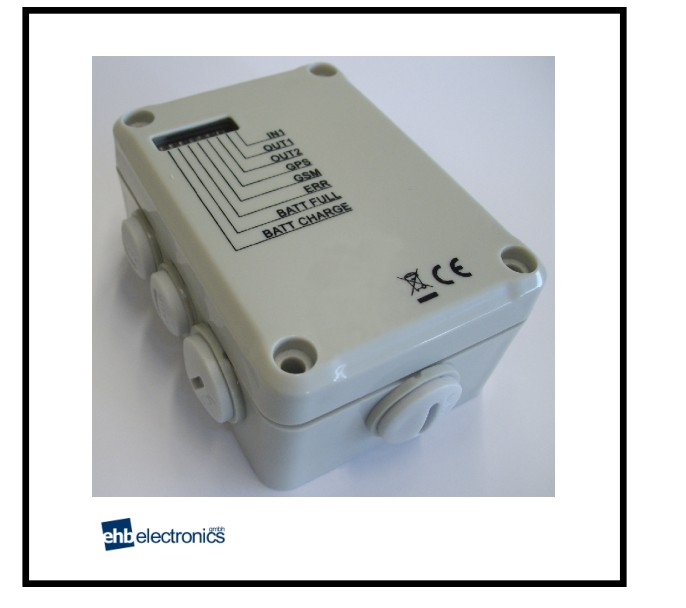

GSM-Alarmmodul

SMS and GPS-enabled alarm module

This SMS and GPS-enabled alarm module enables reliable monitoring and alerting via SMS or email and is ideal for mobile machines, industrial applications and security solutions. Thanks to a built-in LiPo battery as a backup function, the device remains operational even during power failures. A GPS antenna can be integrated as an option for location queries.

The device supports the definition of up to 6 telephone numbers for alarm SMS messages and one e-mail address for notifications. Alarm messages can be easily activated or deactivated, and the device name can be customised.

Monitoring includes digital and analogue inputs: alarms for status changes, limit value exceedances and location queries via GPS ensure full transparency about the status of your systems. The voice selection can be flexibly set to German or English.

Technical data:

Analogue inputs: 1

Digital inputs: 1

Outputs: 2 (for alarm forwarding)

Current consumption: 230 mA at 12 V/DC

Quiescent current: 10 mA at 12 V/DC

Operating voltage: 5–32 V/DC

Dimensions (L x W x H): 88 x 64 x 43 mm

Weight: 165 g

This compact alarm device offers reliable SMS and email notification, optional GPS function and continuous monitoring – ideal for construction, industrial, agricultural and forestry machinery.
